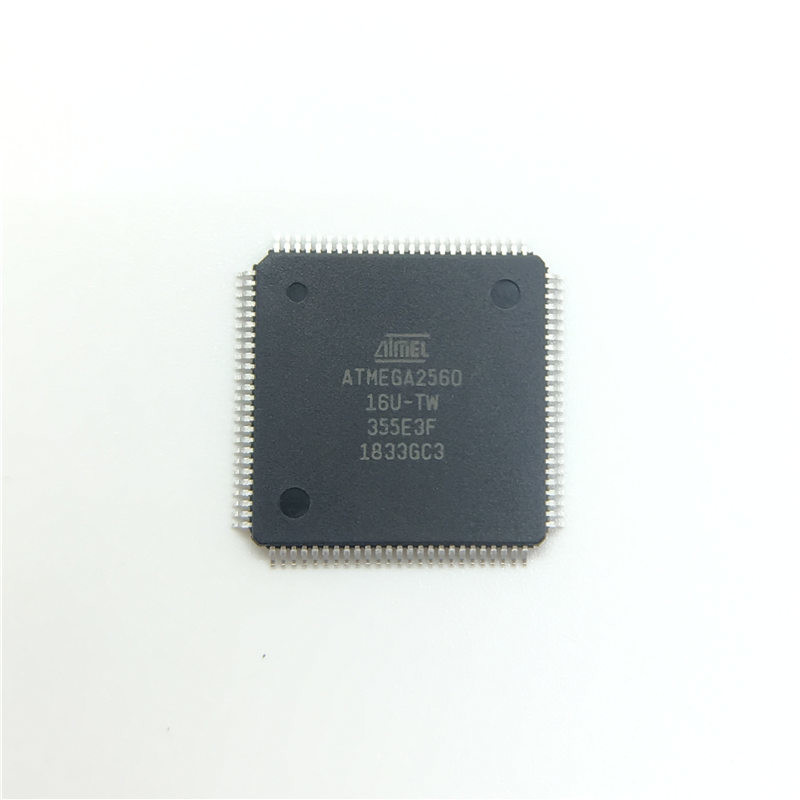

Microcontrollers And Embedded Processors MCU ATMEGA2560-16AU

Brand Name : Atmel

Model Number : ATMEGA2560-16AU

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 3000000 PCS

Delivery Time : Negotiable

Product Model : ATMEGA2560-16AU

Supplier Package : TQFP100

Brief Description : 8-bit

Product Category : Memory IC Chip

Application Areas : Embedded Processors Controllers

Date Of Manufacture : Within A Year

Contact Now

Memory Ic Chip Atmel Embedded Processors Controllers Microcontrollers MCU ATMEGA2560-16AU

Product Range
  • Memory Ic Chip Flash Microcontrollers MCU ATMEGA2560-16AU Atmel Embedded Processors Controllersd
  • 8-bit Atmel Microcontroller with 16/32/64KB In-System Programmable Flash
App Characteristics
  1. High-performance, low-power 8-bit Atmel® AVR® Microcontroller
  • 64K/128K/256KBytes of In-System Self-Programmable Flash
  • 4Kbytes EEPROM
  • 8Kbytes Internal SRAM
  • Write/Erase Cycles:10,000 Flash/100,000 EEPROM
  • Data retention: 20 years at 85C/ 100 years at 25C
  • Optional Boot Code Section with Independent Lock Bits
  • Programming Lock for Software Security
  1. Peripheral Features
  • Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode
  • Four 16-bit Timer/Counter with Separate Prescaler, Compare- and Capture Mode
  • Real Time Counter with Separate Oscillator
  • Four 8-bit PWM Channels
  • Six/Twelve PWM Channels with Programmable Resolution from 2 to 16 Bits (ATmega1281/2561, ATmega640/1280/2560)
  • Output Compare Modulator
  • 8/16-channel, 10-bit ADC (ATmega1281/2561, ATmega640/1280/2560)
  • Two/Four Programmable Serial USART (ATmega1281/2561, ATmega640/1280/2560)
  • Master/Slave SPI Serial Interface
  • Byte Oriented 2-wire Serial Interface
  • Programmable Watchdog Timer with Separate On-chip Oscillator
  • On-chip Analog Comparator
  • Interrupt and Wake-up on Pin Change
  1. I/O and Packages
  • 54/86 Programmable I/O Lines (ATmega1281/2561, ATmega640/1280/2560)
  • 64-pad QFN/MLF, 64-lead TQFP (ATmega1281/2561)
  • 100-lead TQFP, 100-ball CBGA (ATmega640/1280/2560)
  • RoHS/Fully Green
Basic Data

​

Product Attribute Attribute Value
Microchip
Product Category: 8-bit Microcontrollers - MCU
RoHS: Details
ATmega256x
SMD/SMT
TQFP-100
AVR
256 kB
8 bit
10 bit
16 MHz
86 I/O
8 kB
4.5 V
5.5 V
- 40 C
+ 85 C
Tray
Brand: Microchip Technology / Atmel
Data RAM Type: SRAM
Data ROM Size: 4 kB
Data ROM Type: EEPROM
Height: 1 mm
Interface Type: 2-Wire, SPI, USART
Length: 14 mm
Moisture Sensitive: Yes
Number of ADC Channels: 16 Channel
Number of Timers/Counters: 6 Timer
Processor Series: megaAVR
Product: MCU
Product Type: 8-bit Microcontrollers - MCU
Program Memory Type: Flash
90
Subcategory: Microcontrollers - MCU
Tradename: AVR
Width: 14 mm
Unit Weight: 0.020459 oz
